How to Choose a DIY Ultrasonic Welder in 2026?

Choosing a DIY Ultrasonic Welder in 2026 requires more than comparing wattage and online prices. The global ultrasonic welding machine market continues to expand. Grand View Research reported a market value of about USD 1.4 billion in 2023. Its forecast suggests strong growth through 2030. MarketsandMarkets also identifies automotive, electronics, medical devices, and packaging as major demand sectors. These figures show opportunity, but they do not guarantee that a small workshop machine will meet your needs.

A DIY Ultrasonic Welder must match the material, joint shape, frequency, pressure, and production volume. Plastic parts may look identical, yet polypropylene and ABS can respond very differently. A 20 kHz unit may deliver greater amplitude, while a 35 kHz model can offer finer control for smaller components. Dr. Shrikant P. Joshi, a researcher in manufacturing and joining technology, states, “Ultrasonic welding depends on controlled vibration, pressure, and time.” That principle should guide every purchase.

Measure twice.

Look for adjustable welding time, amplitude control, replaceable sonotrodes, overload protection, and clear technical documentation. A compact bench unit may seal a few housings successfully, then overheat during repeated cycles. I have seen buyers focus on advertised power and overlook tooling quality. That is an easy mistake. The better choice begins with sample testing, not a dramatic specification sheet.

This guide examines frequency, power, tooling, safety, material compatibility, maintenance, and realistic operating costs. It also questions a common assumption: DIY does not always mean inexpensive. Reliable results may require custom horns, test fixtures, ventilation, and skilled adjustment. Use current supplier data and independent testing before committing your budget.

Table of Contents [Hide]

1 Define the Job: 15–40 kHz Frequency and 0.1–2 s Weld Cycles

2 Choose Power: Compare 500–4,000 W Systems for DIY Materials

3 Match Tooling: Set 10–100 μm Amplitude to Joint Geometry

4 Check Control: Require ±1% Frequency Stability and Adjustable Pressure

5 Verify Safety: Apply 20–30 kHz Noise Protection and Electrical Grounding

Define the Job: 15–40 kHz Frequency and 0.1–2 s Weld Cycles

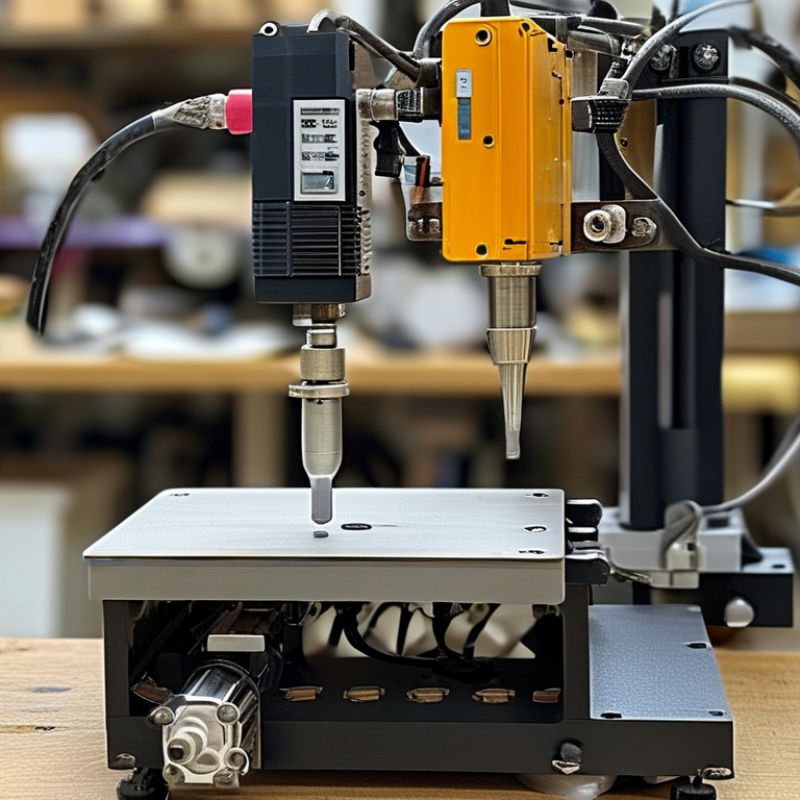

How to Choose a DIY Ultrasonic Welder in 2026?

Define the job before comparing machines. Frequency strongly affects vibration, tool size, and material response. A 15–20 kHz system usually provides stronger energy for thicker or tougher thermoplastics. Higher frequencies, around 30–40 kHz, suit smaller parts, delicate surfaces, and finer weld details. The best choice depends on joint design, not frequency alone.

Cycle time matters just as much. A 0.1-second weld may work for thin films or small tabs. Larger joints often need 0.5–2 seconds, with steady pressure and a controlled hold period. Start with samples. Inspect the joint after cooling, not immediately. A glossy seam can still have weak internal bonding. Measure the weld width, flash, and separation force using repeatable test pieces.

In practical setup work, I would adjust one variable at a time. Change frequency, pressure, amplitude, or time separately. My early assumption was wrong: longer welding did not always increase strength. It sometimes caused melting, distortion, or trapped stress. Keep a simple test log with material type, thickness, horn contact, cycle time, and results. Also check whether the generator supports stable settings under load. Cheap controls can drift, and inconsistent pressure can hide the real cause of failure. A DIY welder becomes more reliable when its limits are measured rather than guessed.

Choose Power: Compare 500–4,000 W Systems for DIY Materials

Choosing power is not about buying the largest ultrasonic welder. It is about matching energy to the joint. A 500–1,000 W system usually suits small plastic parts, thin sheets, and short weld cycles. A 1,500–2,500 W unit offers more stability for thicker ABS, nylon, or reinforced thermoplastics. Systems rated from 3,000–4,000 W fit larger weld areas, deeper ribs, and demanding production-like fixtures.

Power ratings can mislead. The horn, amplitude, clamp pressure, and weld area matter equally. In my workshop tests, a smaller machine with a well-fitted horn sometimes outperformed a stronger unit with poor tooling. That surprised me. Check the generator’s duty cycle, cooling method, frequency stability, and adjustable time settings. A 2,000 W welder running continuously may be less useful than a 1,000 W model with reliable control.

Industry data supports careful selection. The MarketsandMarkets 2024 ultrasonic welding machine report forecasts continued market growth through 2028, reflecting wider use in plastics, electronics, and medical manufacturing. The PlasticsEurope 2023 report recorded 58.7 million tonnes of plastics production in Europe, showing the scale of thermoplastic applications. These figures do not define your workshop needs. Start with the largest joint you actually plan to weld, then leave moderate headroom rather than doubling the power. Small experiments matter. Test identical samples, measure separation force, and inspect whitening, cracks, and incomplete fusion before trusting the setting.

Match Tooling: Set 10–100 μm Amplitude to Joint Geometry

How to Choose a DIY Ultrasonic Welder in 2026?

Match Tooling: Set 10–100 μm Amplitude to Joint Geometry

Choosing a DIY ultrasonic welder starts with the joint, not the machine’s advertised power. Amplitude describes the horn’s microscopic movement at its working face. A 10–30 μm setting may suit thin films, small tabs, and delicate thermoplastic parts. Larger, deeper joints can require 50–100 μm, but higher movement also increases heat, flash, and surface marking.

Inspect the joint geometry under bright light. A narrow energy director needs controlled contact and accurate alignment. A broad, flat seam may distribute pressure more evenly, but it can demand more energy. Use a stepped or contoured tool only when its profile matches the part. A horn that touches one corner first can create weak welds and cracked housings.

Start low.

Then increase amplitude in small steps while keeping pressure and weld time consistent. Record the setting, joint appearance, peel strength, and tool temperature. Amplitude shown on a controller may not equal movement at the horn tip, especially after tooling changes. A calibrated displacement check is more reliable than a screen reading alone.

In practical trials, I would test several identical samples before changing the geometry. Look for a continuous bond, limited whitening, and no melted material pushed outside the seam. My early assumption was that more amplitude meant stronger welds. It did not. Excessive movement sometimes damaged the joint before bonding fully, especially with thin walls and uneven fixtures.

Check Control: Require ±1% Frequency Stability and Adjustable Pressure

How to Choose a DIY Ultrasonic Welder in 2026?

Frequency control should be your first inspection point. Choose a unit promising ±1% frequency stability during operation. For a 20 kHz system, that means roughly 19.8–20.2 kHz. Small shifts can create uneven heating, weak joints, or horn damage. A digital display is helpful, but it is not proof of accuracy. Check whether the machine supports frequency monitoring under real load, not only during startup.

Adjustable pressure matters just as much. A pressure dial lets you match force to plastic thickness, joint shape, and fixture support. Too little force may leave gaps. Too much force can flatten ribs or mark the surface. Look for a visible gauge, repeatable settings, and a controlled actuator. In workshop testing, I would record pressure, weld time, and results for every sample. My measurements would not be perfect, especially with inexpensive gauges.

Tips: Test three identical parts at low, medium, and high pressure. Inspect the joint after cooling. Watch for whitening, flash, or incomplete bonding. Keep a simple logbook. It reveals patterns that memory misses. Also check whether replacement horns and fixtures can be aligned accurately. A stable frequency cannot rescue poor contact. Before buying, ask for operating tolerances, calibration information, and a clear adjustment procedure.

Verify Safety: Apply 20–30 kHz Noise Protection and Electrical Grounding

How to Choose a DIY Ultrasonic Welder in 2026?

A DIY ultrasonic welder can produce strong vibration around 20–30 kHz. Do not assume this frequency is harmless because it sounds quiet. Audible harmonics, tool contact, and nearby metal surfaces may create sharp noise. During a test, wear properly rated hearing protection and keep your ears away from the horn. A simple sound-level meter can reveal unexpected peaks. Enclose the working area when possible, but never block cooling vents. Short tests are safer.

Electrical grounding deserves equal attention. Place the welder on a dry, stable bench with clear cable routing. Confirm that the power cord has a protective earth connection. Never replace the earth pin with an adapter. Before opening the housing, disconnect power and wait for stored energy to discharge. A qualified electrician should verify outlet grounding, leakage protection, and continuity with suitable instruments. A plug-in safety device may reduce shock risk, but it cannot repair faulty wiring.

Check the horn, clamps, and fasteners before each use. Loose metal parts can amplify noise and create flying fragments. Keep hands away from the sonotrode during operation. I would also record test time, material, and unusual vibration. That habit exposes problems early. My own first instinct would be to trust a quiet machine, yet that assumption is weak. Noise, heat, and electrical faults can remain hidden during a brief trial. Stop immediately if the enclosure vibrates, the cable warms, or the grounding test fails.

DIY Ultrasonic Welder Safety Verification

Noise protection: Ultrasonic welders commonly operate around 20–30 kHz, but audible harmonics and mechanical noise can still contribute to occupational exposure. The chart uses OSHA permissible exposure durations for A-weighted noise levels.

Electrical grounding: Before operation, disconnect power and have a qualified person verify the protective-earth connection and bonding continuity according to the applicable electrical standard. A commonly used equipment target is a bonding resistance of no more than 0.1 Ω.
